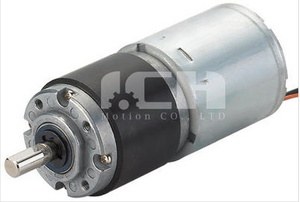

Planetary Electric Brushless DC Geared Motor

• Gearbox Type: Planetary Gearbox • Gear Ratio: 3~307 • DC Gearhead Motor Voltage: 24V • DC Gear Reducer Size: 32mm • Application: medical devices, electric vehicles, and other fields
Availability:
Quantity:
  • DG325

  • I.CH

  • 32mm Brushless DC Gear Motor

Description of Planetary Electric Brushless DC Geared Motor

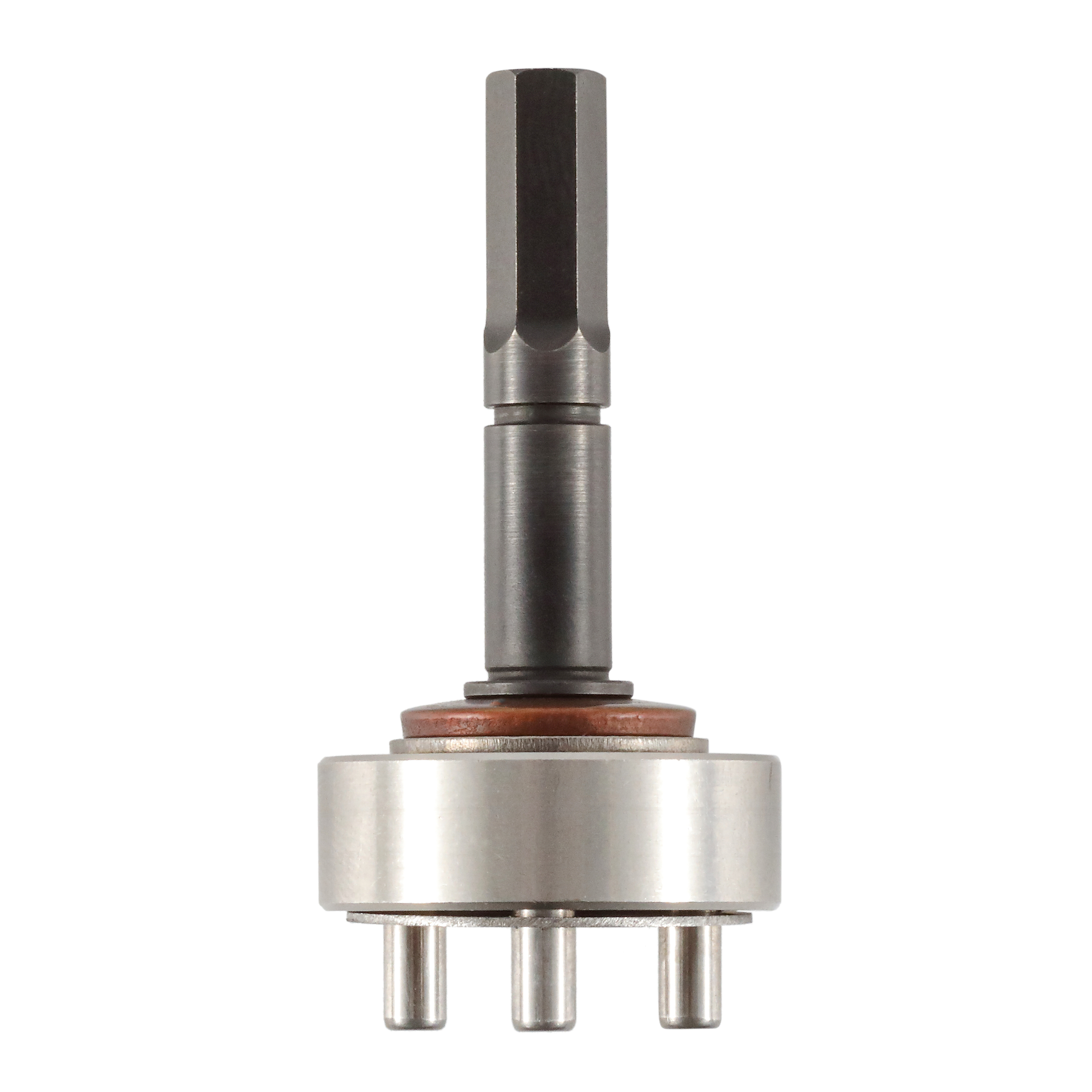

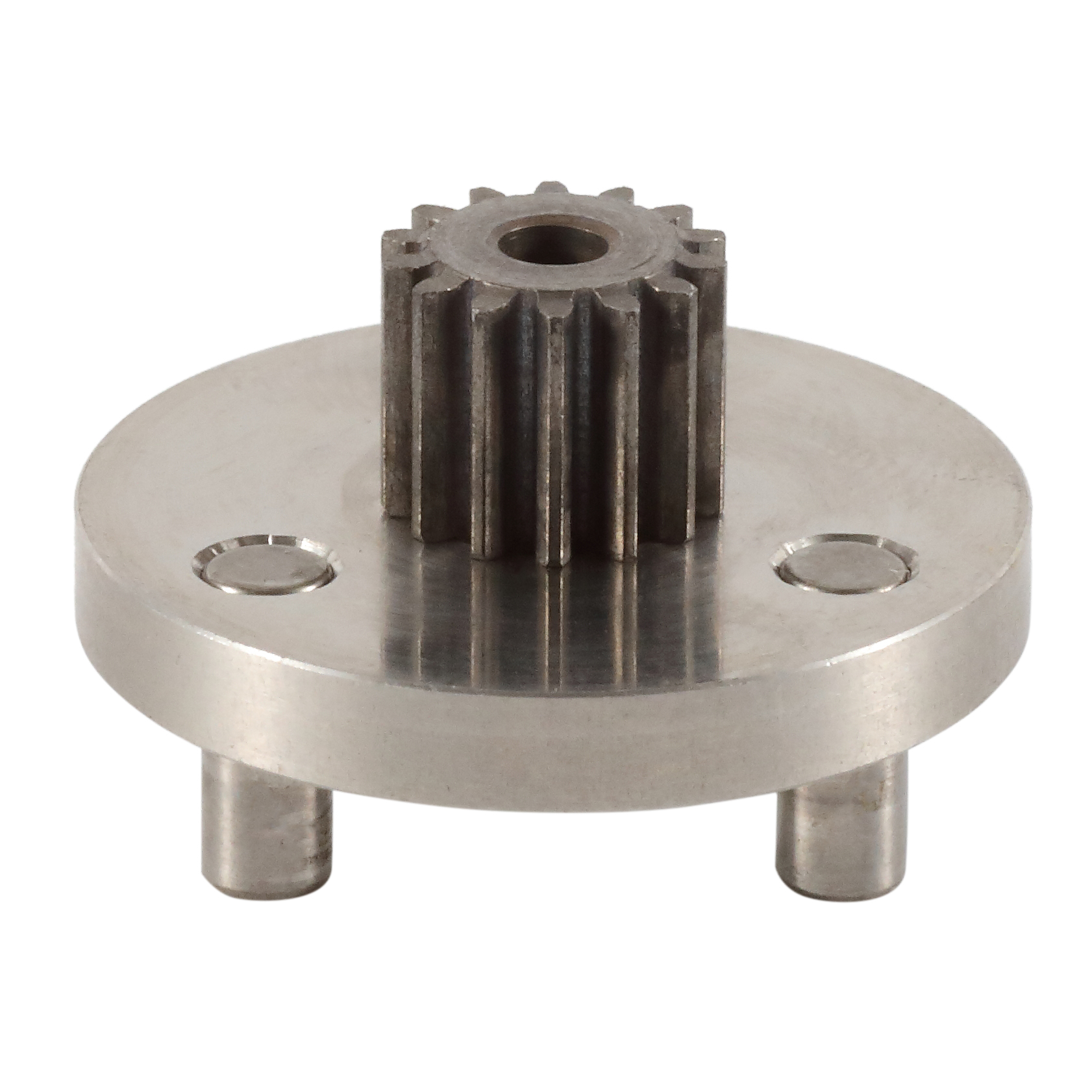

The brushless DC motor that I.CH manufactures is a 32mm miniature DC motor. To get high torque at low speed, we add a planetary gearbox.

Electrical Specification

Motor Model

D325-10W

D325-10W

D325-20W

Rated Voltage(VDC)

24

24

24

Rated Speed(Rpm)

3000

3000

3000

Rated Torque(N.m)

0.03

0.045

0.06

Rated Power(W)

10

15

20

L1   Length(mm)

56

66

76


Gearbox Electrical Specifications

Reducer Series

1

2

3

Transmission efficiency

90%

81%

73%

Max radial load

35N

35N

35N

Max axial load

25N

25N

25N

Transmission torque

1N.m

1.2N.m

2.5N.m

Reduction Ratio

3.7,5.18,6.75

14,19,25,27,35,45

51,71,93,100,139,181,236,307

L2     Length(mm)

25.6

34

42

*Note: We can manufacture products according to customer’s requirements.



Mechanical Dimensions for Planetary Brushless DC Geared Motor

Brushless DC Electric Planetary Geared Motor


Wiring Diagram
