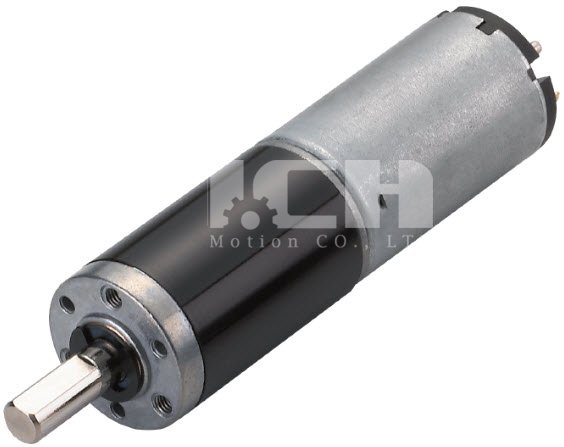

22mm DC Planetary Gearmotor 24V

• Manufacturer Part Number: DP223C high torque • Gearbox Type: Planetary Geared box with Metal Gear • Gear Ratio:1:5~1:3968 • Electric Planetary Reducer Size: 22mm • Ball bearing of shaft bearings in most series is available. • OEM Custom modifications is available. • Application: Automatic Window Bind Motor, Medical Instrument Motor
Availability:
Quantity:
  • DP223C GearMotor 24V

  • I.CH

  • 22mm Reducer Motor

The Specification in the table comes from the motor with planetary gearbox, planetar gears is all Metal Gear, highest torque is 60kg.cm

Gear Motor Torque & Speed

Reduction
 ratio
1/51/181/201/251/661/771/901/1101/1361/2461/3361/3931/4841/5971/7351/10791/14751/21241/3968
12VRated
torque(g.cm)
26085010001200270032003700400040005000500050005000500050006000600060006000
Rated
speed(rpm)
15004003402801059279645229.422.419.61612.910.57.45.542
24VRated
torque(g.cm)
26085010001200270032003700400040005000500050005000500050006000600060006000
Rated
speed(rpm)
15004103502901109581675631232016.313.110.77.55.642

Rotation
direction
CCW

Length
(L-mm)
23.329.535.741.948.1


• Different material or different spec of gears can be customized chosen, all plastic, all metal, or helical gears versions.

• Modified versions for extended temperature and special environmental conditions are available.


DC Motor Specification
Rated volt(V) Rated torque
(g.cm)
Rated speed
(rpm)
Rated current
(mA)
No load speed
(rpm)
No load current
(mA)
Weight(g)
12 70 7100 <=700 9000 <=190 51
24 70 7400 <=360 9000 <=120 51

D223C-05&06电机曲线



                                                 Mechanical Dimensions
D223C-05&06



Full Datasheet

DP223C-05&06.pdf
