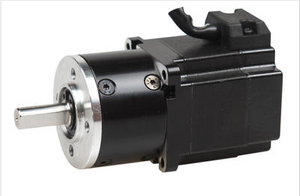

42mm Square Brushless DC Gear Motor

• Manufacturer Part Number: DG425
• Gearbox Type: Planetary Gearbox
• Gear Ratio: 4~100
• DC Gearhead Motor Voltage: 24V
• DC Gear Reducer Size: 42mm
• Application: household appliances, electric vehicles and other fields
Availability:
Quantity:

Description of mini brushless dc gear motor

The DG425 is a brushless DC motor integrated with a planetary gearbox. This product is a good solution for the application that requires high torque at low speed under 3000rpm.


Motor Model

DG425-31W

DG425-63W

DG425-94W

Rated Voltage(VDC)

24

24

24

Rated Speed(Rpm)

3000

3000

3000

Rated Torque(N.m)

0.1

0.2

0.3

Rated Power(W)

31

63

94

L1   Length(mm)

47

67

87


Gearbox Electrical Specifications

Reducer Series

1

2

Transmission efficiency

95%

90%

Max radial load

80N

80N

Max axial load

30N

30N

Transmission torque

12N.m

20N.m

Reduction Ratio

4,5,10

16,20,25,40,50,100

L2     Length(mm)

33.5

43

*Note: We can manufacture products according to customer’s requirements.






Mechanical Dimensions for 42mm Square Brushless DC Gear Motor

robot brushless dc gear motor


Wiring Diagram

mini brushless dc gear motor
