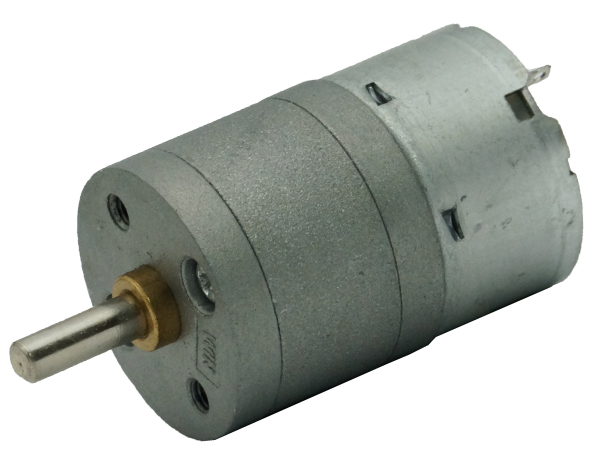

Description
For common small electric motors, to get high torque at low rpm, the gearbox needs to use. The gearbox has many types such as spur gearbox, planetary gearbox. For the miniature DC motor, the motor can be brush or brushless.
Advantage
1, All-metal cutting gear, long life
2, Encoder can provide
3, Different type of oil or grease to lubricate
4, Multiple materials to (housing, gear) choose
Gearbox Specifications
Number of Stages | 3 | 4 | 5 | 6 | 7 | 8 |
Reduction Ratio | 9.7 | 16.1 | 26.9 | 59.2 | 130.1 | 286.3 |
12.5 | 21.3 | 35.5 | 78.1 | 171.8 | 377.9 | |
46.9 | 103.1 | 226.8 | 498.9 | |||
Length of Gearbox (mm) | 19.0 | 21.0 | 23.0 | 25.0 | 27.0 | |
DC Motor + Gearbox Specifications
Model | Rated Voltage (V) | Rated Torque （kg.cm） | Rated Speed (rpm) | Rated Current (mA) | Output Power (mW) | Torque at Stall (Kg.cm) | Current at Stall (mA) | No Load Speed (rpm) | No Load Current (mA) |
D252-003103 | 6.0 | 0.25 | 50 | 160 | 130 | 1.5 | 600 | 65 | 80 |
D252-007226 | 3.0 | 0.65 | 12 | 90 | 80 | 3.5 | 350 | 15 | 40 |
D252-005226 | 6.0 | 0.5 | 24 | 160 | 120 | 6.5 | 600 | 30 | 80 |
D252-017500 | 3.0 | 1.7 | 4 | 60 | 70 | 4.5 | 300 | 5 | 30 |
* Specification can be customized as the inquiry. Contact: sales@ichmo.com
